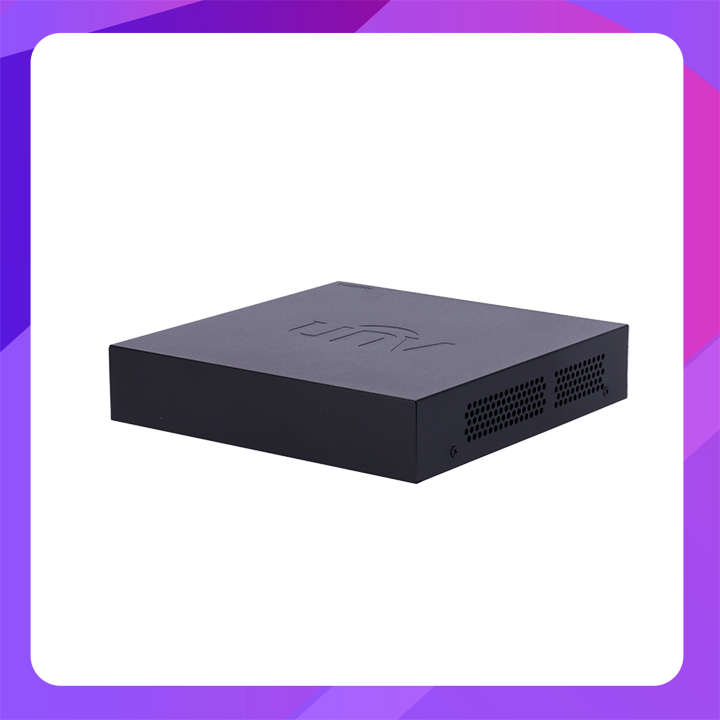

UNV 1 HDD 8-Ch 1U Digital Video Recorder
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Control the dual-light of UNV analog cameras under TVI
- Support analog camera upgrade over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Specifications
| IP Video Input | 2-ch |
| Analog Video Input | 8-ch, BNC |
| Max IP Video Input | 10-ch |
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| HDMI Output | HDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| Encoding/ Decoding | Recording Resolution : 1080P Lite/720P/D1 |
| Dimensions | 190mm × 202mm × 42mm (7.5" × 7.9" × 1.6") |
| Warranty | 2 Years |
