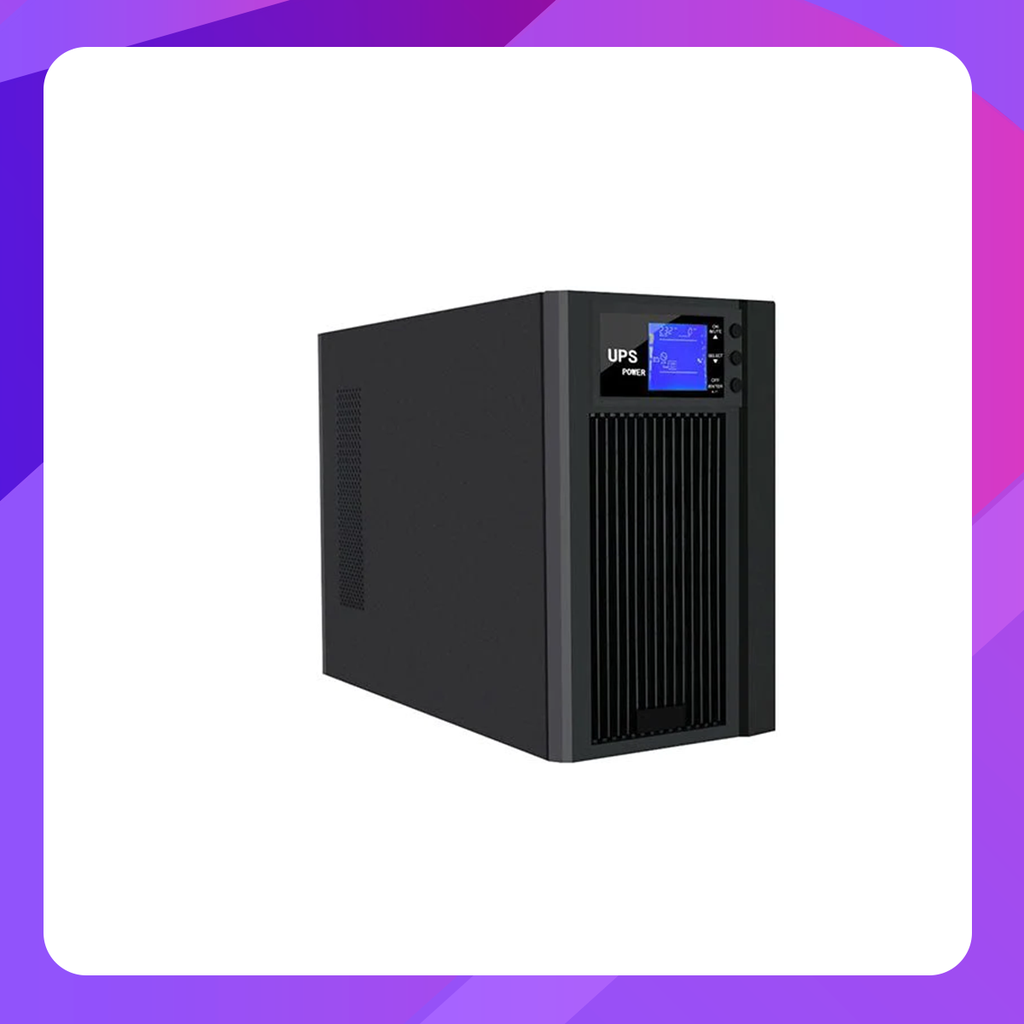

ECSUN C2K 2KVA Online UPS
- Able to feed in from Generator
- Wide Input Voltage Range (115V~300V),
- Automatic Voltage Regulation (AVR), Stable Voltage Output to ensure the safety and stability of the connecting devices..
- Complete Battery Management automatically adjust the Battery
- Termination Voltage to extend the battery lifespan.
- UPS will automatically start up during the Off Grid Condition to fulfill the emergency situation.
- Wide Input Voltage Range,
- Suitable for Harsh Grid Environment,
- Reliable and Cost Effective tailor made for PC and Small Enterprise Key Terminal Station,
- Automatic Switch on and working independtly.
Specifications
| Rated output capacity | 2KVA/1.6KW(2kw) |
| Rated Voltage | 220VAC/110VAC |
| AC Input voltage range | 115-300VAC±5 |
| Input frequency range | (45-55)±0.5Hz |
| Bypass voltage | 80VACx(1±5%)-285VACx(1±5%) |
| Input Battery group voltage | 48VDC |
| Battery Capacity & quantity | 7AH*4pcs |
| Battery method | Internal |
| Battery charging time | 5hours can charge to 90% (standard) depend on the capacity of external battery group(long-running) |
| Wave form | sine wave THD<3( linear load) sine waveTHD<8%(Nonlinear load) |
| Transfer time between Battery | 0ms |
| Warranty | 1 Year |
| Communication and monitoring functions | RS232(can transfer to 485,Dry node,Smart slot (can expand to SNMP,SMS and other monitoring methods) |
